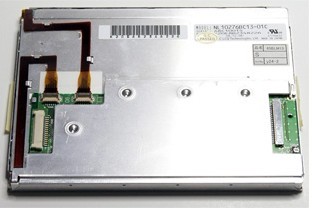

NL10276BC13-01C
Brand : NEC Model : NL10276BC13-01C Type : a-Si TFT-LCD Size : 6.5" (inch)
|
Product Detail |
Brand : NEC Model : NL10276BC13-01C Type : a-Si TFT-LCD Size : 6.5" (inch) Resolution : 1024(RGB)×768 Display Mode : TN, Normally Withe Sureface Treatment : Clear,Hard coating (2H),Anti-Reflective Processing Luminance : 600 cd/m2 Contrast Ratio: 500:1 (Typ.) Display Color: 262K/16.7M (6-bit / 6-bit + Hi-FRC) Response Time : 6/19 (Typ.)(Tr/Td) Viewing Angle : 80/80/80/60 (Typ.)(CR≥10) (左/右/上/下) (L/R/U/D) Sweep Frequency : 60Hz Lumps Type : 9S6P WLED Signal Type : LVDS (1 ch, 6/8-bit) Panel Voltage: 3.3V (Typ.) Application : Industrial
|
|
|
|
