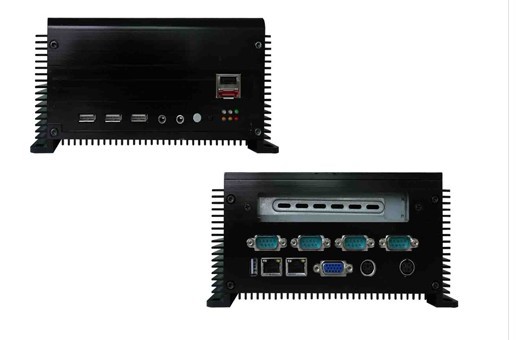

Name : MBOX-5106
Features :
The box PC comes with :
1. Onboard ULV Intel Core Duo U2500(1.2GHz/2M) CPU ;
2. Onboard 1.0GB DDRII system memory,(up to 2.0GB);
3. With 6*COM(3xRS-232,3xRS-232/422/485);
4. With 5xUSB , 1xeSATA, 1* extensional 32bit PCI slot;
5. Adopting to fanless design;
6. Highly integrated, high performance, non-noise design;
7. And Using non-stub cable design, the whole device is extremely smart;
8. Supports power supply: DC_IN 6V~24V.
Specification: Color: Black. Material: Alloy-Al CPU: Onbaord Intel Core Duo U2500(1.2GHz/2M) CPU Chipset: Intel945GME+ICH7-M RAM: Onboard 1.0GB DDRII system memory(up to 2.0GB),1*200Pin
DDRIISO-DIMM slot,up to 4.0GB for mother board. BIOS: 4Mb AMI BIOS I/O: 2xSATA 、1xTV 、8xUSB、1xVGA 1x dual channel 18-bit
LVDS 1xKB/MS 1xLTP/, 6xCOM (3xRS-232422//485),
4 lines digital input/output. LAN: 2xRJ45(1x10/100/1000Mbps) Audio card: Line_out, MIC_In, 5.1 sound channel. Storage space: 1x2.5”SATA slot, 1xCF socket. Extensional BUS:1*Mini PCI-E x 1 BUS ; 1*PCI-104 BUS Watchdog: Watch dog timer 256,programmable interrupt, reset. Power supply: DC_IN 6V~24V Gross weight: 3.16Kg Operating Temp: -20~60℃(required wide temp HDD) Storage Temp: -40℃~80℃ Humidity: 5%~95%,non-condensing. Dimensions: 195x210x96mm (W *D * H) |
