Name : KVM-1900P series

Features:
1. LCD display/Touchpad mouse/104 Keyboard with Digital Zone/E-Switch.
2. Excellent video effects, the best resolution is up to 1280*1024 @ 75HZ.
3. Support DDC2B.can detect the screen model without switching the computer.
4. PS/2 keyboard and mouse are connected to control computer.
5. With drawing installation design, the length can be adjusted to fit the rack space.
6. Humanized design，can be installed and removed by only one person.which improves the efficiency of the administrator.
7. To switch the host computer though the hotkey or OSD menu, which can manage up to 512 computers.
8. Password security protection, only authorized users can view and manage on-line computer.
9. Support a variety of brand industrial computer and the server，such as LENOVO,IBM,DELL,HP,SUN,EVOC etc.
10. Support various operating system: Microsoft, Linux, Unix, etc.

Specification:

1.      Model : KVM-1900P series

2.      Computor Connections: Direct 1, Max: 4   Direct 4, Max: 128    Direct 8, Max: 256  Direct 16, Max: 512

3.      Cable Port : D-SUB15 (LCD, PS11/USB keyboard, mouse).OSD switch Support.

4.      Switcg Mode : Hotkey , OSD Menu

5.      Switch Scan Time : 1-255 second (OSD adjustable )

6.      LCD display : 19” TFT LCD , Resolution :1280*1024 , Brightness : 300 nits , Contrast Ratio : 700:1

7.      Keyboard / Mouse : 104 Mechanical mute Keyboard Touchpad

8.      Input : AC100-240V 47-63Hz,35W

9.      Cabinet Material : High-strenght and Anti-corrosive steel plate

10.  Color : Insulated black paint (other colors optional)

11.  Dimension : 609.2mm*480mm*44mm ( L x W x H )

12.  Gross Wight : 21.5-26.3KG

13.  For Cabinet : 800-1040mm

14.  Storage Temperature : 　-30℃~70℃

15.  Working Temperature : -10℃~60℃

16.  Humidity : 0%～80% RH

17.  Working Life : 120000 hours

18.  Certification : CCC,FCC,CE

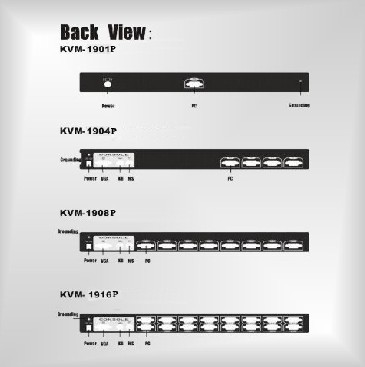

 Order Information :
1.KVM-1901P        19"TFT/Koyboard/Touchpad/100~240V AC Power
2.KVM-1904P        19"TFT/Koyboard/Touchpad/100~240V AC Power/4 Port Switch
3.KVM-1908P        19"TFT/Koyboard/Touchpad/100~240V AC Power/8 Port Switch
4.KVM-1916P        19"TFT/Koyboard/Touchpad/100~240V AC Power/16 Port Switch
