Product details:

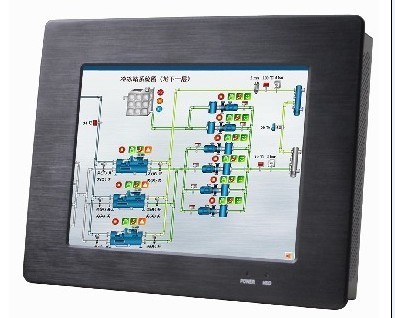

·LPC-1000 is a Industrial Tablet PC with high brightness 10.4” LCD ,
·the latest low-power motherboard, 160G high-speed hard drives.
·It has a network interface, four USB ports, four serial ports , VGA interface, audio interface, PS / 2 keyboard / mouse interface.
·PCI uses the extended form, it can extend a CF card ; the brightness and contrast of the LCD screen can be adjusted, and has standby power saving mode.
·Advanced structural design, convenient installation. Installation method is compatible with panel type, wall-mounted, VESA standard support arm and so on.
·A cooling fan is installed in the chassis. Thermal performance is good. The product structure is very compact and robust, its vibration and resistance is good, so it is reliable.
· LPC-1000 is a cost-effective industrial grade tablet PC, can be widely used in the communication, control terminal of the electric power, manufacturing, finance, traffic monitoring and so on.
Specifications:
Parameter
system
Driver disk shelf 3.5" or 2.5" HD（optional）
USB interface 4x USB interface（one USB interface is used by Touch screen.）
keyboard and Mouse Support 1xPS/2 Keyboard and 1xPS/2 Mouse
Power 120W AT/ATX on/off DC8-28V
operating system Support Windows, NT, UNIX, LINUX, NOVELL, DOS, etc.
structure
structure Embedded structure
panel 10mm thick high-strength aluminum alloy panels and steel shell
color Industry Gray（Optional）
Dimension 350mm×276mm×65mm
Gross weight 5.8KG
Environment
Operating temp -10℃-50℃
storage temp -20℃-60℃
Humidity 10％-90％、40℃ Non-condensing
Vibration 5-17Hz，0.1inch double amplitude displacement；17-640Hz，
1.56 peak-peak acceleration
Impact 10G peak-peak acceleration，the duration is 15ms in the X,Y,Z.
EMC FCC/CE Class A
mainboard Embedded
CPU onboard mother board Intel ATOM 1.6GHz CPU
memory 1GB up to 2Gb
Display controller 15" (1024×768)color TFT LCD
Ethernet Onboard Realtek 82551ER 10/100Base-T Ethernet controller
2x RJ-45 LAN input /output :
Input/Output: 4* COM，1*LPT，1*PS/2 for kb.mice
power workload calibration
AC 180V~ output MIN(A) MAX(A) LOAD LINE
240V input +5V 1 12 ±5% ±1%
+12V 1 14 ±5% ±1%
+3.3V 1 14 ±5% ±1%
-12V 0 0.5 ±10% ±1%
+5VSB 0 2 ±5% ±1%
LCD
Display TFT
Active area 304.1 X 228.1
Resolution 1024×768@75Hz
colors 16.7M
pitch 0.297(H)×0.297(W)
BRIGHTNESS 300cd/㎡
Viewing angle 65/65;45/55(L/R;U/D)
Brightness control OSD control
Backlight MTBF 50000hrs
Touch screen（optional）
Type 5-wire resistive
optical transmission 76％±2
light transmittance 80％-90％
Operating pressure 25G(general standard)-35G
Yang resistance characteristics 300
the average displacement difference 1%
Interface USB/COM (optional)
Ordering information
1：LPC-1000 10.4″industrial Panel PC,w/CPU: 1.6GHz,w/RAM: 1GB,w/HDD:320G,w//12V 6A power adapter
2：LPC-1000T 10.4″industrial Panel PC,w/CPU: 1.6GHz,w/RAM: 1GB,w/HDD:320G,w//12V 6A power adapter,w/touch screen
Our company also produce a variety of 10.4"Panel PC ，welcome to call for more information. |
