Feature:

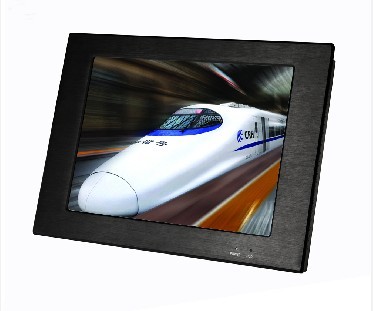

·High brightness 15 "TFT LCD integrates with the latest low-power motherboard.
·Built-in ultra-thin notebook hard drive installation method is compatible with panel type, wall mount and VESA standard support arm
·Support AT / ATX dual power mode. It can extend CF card, and the resistive Touch screen is optional.
· It Can be widely used in the communications and control terminal of the telecommunications, electricity, multimedia, defense, medical, industrial automation equipment, manufacturing and other fields .
Specifications:
Parameter
system
Driver disk shelf 3.5" or 2.5" HD（optional）
USB interface 4x USB interface（one USB is for used by Touch screen.）
keyboard and Mouse support 1xPS/2 Keyboard and 1xPS/2 Mouse
Power 120WAT/ATX DC8-28V
Operating system Support Windows, NT, UNIX, LINUX, NOVELL, DOS, etc.
structure
structure Embedded structure
panel 10mm thick high-strength aluminum alloy panels and steel shell
color Industry Gray (Optional)
Dimension 403mm×304mm×70 mm
Gross weight 9.15KG
Environment
Operating temp -10℃-50℃
storage temp -20℃-60℃
Humidity 5％-95％Non-condensing
Vibration 5-17Hz，0.1inch double amplitude displacement；17-640Hz，
1.56 peak-peak acceleration
Impact 10G peak-peak acceleration，the duration is 15ms in the X,Y,Z.
EMC FCC/CE Class A
mainboard Embedded mother board
CPU onboard motherboard Intel Atom 1.6GHz CPU
memory 1GB up to 2Gb
Display controller 15" (1024×768)color TFT LCD
Ethernet Onboard Realtek 82551ER 10/100Base-T Ethernet controller
2x RJ-45 LAN input /output
I/OI: 4* com，1*LPT，1*PS/2 for kb/mice
power workload calibration
AC 180V~ output MIN(A) MAX(A) LOAD LINE
240V input +5V 1 12 ±5% ±1%
+12V 1 14 ±5% ±1%
+3.3V 1 14 ±5% ±1%
-12V 0 0.5 ±10% ±1%
+5VSB 0 2 ±5% ±1%
LCD
Display 15" TFT LCD Screen
Active area 304.1 X 228.1
Resolution 1024×768@75Hz
colors 16.7M
pitch 0.297(H)×0.297(W)
BRIGHTNESS 300cd/㎡
Viewing angle 65/65;45/55(L/R;U/D)
Brightness control OSD control
Backlight MTBF 50000hrs
Touch screen（optional）
Type 5-wire resistive
optical transmission 76％±2
light transmittance 80％-90％
Operating pressure 25G(general standard)-35G
Yang resistance characteristics 300
the average displacement difference 1%
Interface USB/COM (optional)
operating system support Windows, NT, UNIX, LINUX, NOVELL, DOS, etc.
ordering information
1.LPC-1500 15" industrial Panel PC,w/CPU:1.6GHz,w/RAM:1GB ,W/HDD:320G,w//12V 6A power adapter
2.LPC-1500T 15" industrial Panel PC,w/CPU:1.6GHz,w/RAM:1GB ,W/HDD:320G,w//12V 6A power adapter,w/Touch screen
Our company also produce a variety of 15" Panel PC, welcome to call for more information.
|
