Features:
· High brightness 17 "TFT LCD integrates with the latest low-power motherboard.
·Built-in ultra-thin notebook hard drive installation method is compatible with panel type, wall mount and VESA standard support arm to support AT / ATX dual power mode.
·It can extend CF card, and the resistive Touch screen is optional.
· It Can be widely used in the communications and control terminal of the telecommunications, electricity, multimedia, defense, medical, industrial automation equipment, manufacturing and other fields .
Specifications:
Parameter
system
Driver disk shelf 3.5" and 2.5"HD （optional）
USB interface 4x USB interface（one USB is for used by Touch screen）
Keyboard and Mouse support 1 PS/2 keyboard and 1 PS/2 Mouse
Power 120WAT/ATX DC8-28V
Operating system Support Windows, NT, UNIX, LINUX, NOVELL, DOS, etc.
Structure
structure Embedded structure
Panel 10mm thick high-strength aluminum alloy panels and steel shell
color Industry Gray（Optional）
Dimension 419 mm×340mm×74 mm
Gross weight 10.85KG
Environment
Operating temp -10℃-50℃
storage temp -20℃-60℃
Humidity 5%-95% Non-condensing
Vibration 5-17Hz，0.1inch double amplitude displacement；17-640Hz，
1.56 peak-peak acceleration
Impact 10G peak-peak acceleration，the duration is 15ms in the X,Y,Z.
EMC FCC/CE Class A
mainboard Embedded mother board
CPU onboard motherboard Intel Atom 1.6GHz CPU
memory 1GB, up to 2Gb.
Display controller 17" (1280×1024)color TFT LCD
Ethernet Onboard Realtek 82551ER 10/100Base-T Ethernet controller
2x RJ-45 LAN input /output :
I/O 4*serial ports，1* parallel port，1*PS/2 Keyboard/Mouse interface
power workload calibration
AC 180V~ output MIN(A) MAX(A) LOAD LINE
240V input +5V 1 12 ±5% ±1%
+12V 1 14 ±5% ±1%
+3.3V 1 14 ±5% ±1%
-12V 0 0.5 ±10% ±1%
+5VSB 0 2 ±5% ±1%
LCD
Display 17" TFT LCD Screen
Active area 337.9 X 270.3
Resolution 1280×1024@85Hz
colors 16.7M
pitch 0.297(H)×0.297(W)
BRIGHTNESS 300cd/㎡
Viewing angle 90/90;90/90(L/R;U/D)
Brightness control OSD control
Backlight MTBF 500000hrs
Touch screen（optional）
Type 5-wire resistive
optical transmission 76％±2
light transmittance 80％-90％
Operating pressure 25G(general standard)-35G
Yang resistance characteristics 300
the average displacement difference 1%
Interface USB/COM (optional)
Ordering information

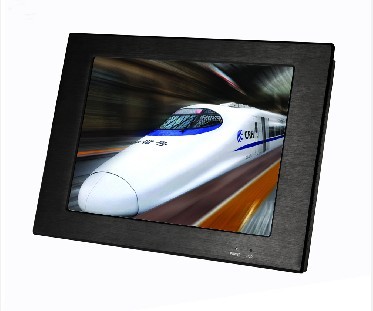

1.LPC-1700 17″industrial Panel PC,w/CPU:1.6GHz,w/RAM:1GB ,W/HDD:320G,w//12V 6A power adapter
2.LPC-1700T 17″industrial Panel PC,w/CPU:1.6GHz,w/RAM:1GB ,W/HDD:320G,w//12V 6A power adapter,w/Touch screen
Our company also produce a variety of 17" Tablet PC, welcome to call for more information.
|
