Features:

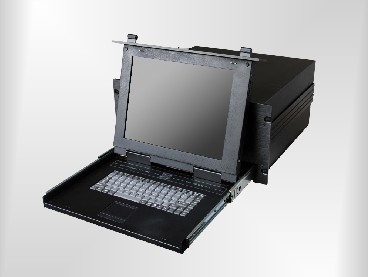

＆#8226;LCP-W150 is a 15 "LCD Industrial Rackmount Workstations with LCD KVM drawer structure.
＆#8226;Integrated industrial-size card with the big board in one structure
＆#8226;Good I / O scalability, LCD screen brightness can be adjusted, and has a standby power saving mode the installation method is compatible with 19 "standard racks mode.
＆#8226;Good cooling system,Product structure is Compact、rugged, vibration, shock performance, reliable.
＆#8226;Can be widely used in electric power, manufacturing, environmental protection, communications, control terminal
Specifications:
structure: 19″ 4.5U Rackmount workstations
Panel: 10mm thick high-strength aluminum alloy panels, after drawing hard anodized oxidation
Display: 15″ high brightness LCD screen
Best resolution: 1024× 768 75HZ.
Operation: Withdrawing 88 keyboard and touchpad makes user input data conveniently.
motherboard Support for full-size and half-size card, mini 17*17CM ， PC motherboard.
Driver 2* 5.25 " CD-ROM bays, 2*3.5" HD bays, additional HD bays can be increased if need.
Power Supply: 300W Industrial Switching Power Supply with PFC
Color: Industrial Black (Other colors are optional.)
Dimension: 459.8mm *442mm*200mm
Environment
Work temperature: -10 ℃～50 ℃
Storage temperature: -20℃～60℃
Work humidity: 5%-95% Non-condensing
Vibration: 5-17Hz, 0.1-inch double amplitude displacement; 17-640Hz, 1.56 peak-peak acceleration
Impact: 10G peak-peak acceleration, 15MS duration in each direction of the X, Y, Z axis
EMC: CE/FCC A
Ordering information
1：LCP-W150 15"LCD,w/4.5U height chassis,w/CPU:945 775 dual core,w/RAM:1G,w/HDD:160G,w/PS 300W power,w/6114P4 backplane
2：ICP-W150T 15"LCD,w/4.5U height chassis,w/CPU:945 775 dual core,w/RAM:1G,w/HDD:160G,w/PS 300W power,w/6113LP4 backplane
