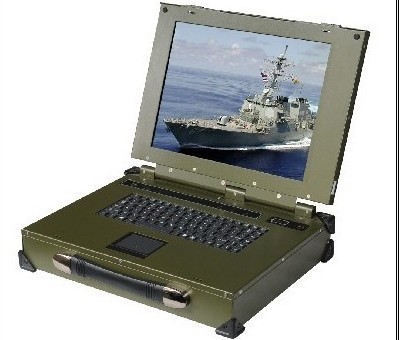

Name : LCP-2515G
Product Details:
· 2.5U highly portable integrated structure. There are 4 USB interfaces in the rear panel. With the design of anti-vibration and anti-collision body and the anti-slip handle ,this product has two PCI expansion slots.
· The laptop keyboard and trackball mouse and 2.5 "wide notebook hard drive improve the seismic coefficient of the machine.
· Widely used in military, field operations, industrial services and operations, network communications and testing, highway toll, etc.
Specifications:
Parameter
System
Driver disk shelf 3.5"HDD bay, Ultra-thin notebook CD-ROM, 2.5"HDD bay(optional)
USB interface 6 USB port can be extended
Operating system Support Windows, NT, UNIX, LINUX, NOVELL, DOS, etc.
Structure
Structure 2.5U Portable integrated structure
Color Black（Other colors are optional）
Dimension 388mm×328mm×108mm
Environment
Work temperature -10 ℃～ 50℃
Storage temperature -20 ℃～ 60℃（Non-condensing）
Work Humidity 10% ～ 90% Relative Humidity，Non-condensing
Vibration 5-17Hz，0.1-inch double amplitude displacement；17-640Hz，
1.56Peak-peak acceleration
Impact 10G Peak-peak acceleration， the duration is 15MS in the X, Y, Z axis.
EMC 3C/CE/FCC A
Recommended with ICA-945 Motherboard
CPU Onboard CPU, support Intel Core＆#8482;Duo、
Intel Core2＆#8482; Duo、Intel Core ＆#8482;
Solo、Intel Celeron M Processor
Support 533/667MHz FSB.
System Memory individualDDR2 SODIMM200 socket, Support DDR2-400/533/667，
Maximum capacity is up to 2GB。
Chipset Intel 82945GM（GMCH）、82801GBM/FB（ICH7M/ICH7） Chipset。
Interface 1xIDE，2xSATA, 2xCOM，
1xVGA,1Xlvds,1x S-VIDEO ,1x
IR_DA ,1x PCI ,1个PS/2 MS/KB,
Power Industrial 1U 220W/250W
LCD
Display 15"TFT LCD
Active area 304.1mm(H) ×228.1mm(V)
Best Resolution 1024×768 @85Hz
Colors 16.7M
Pitch 0.297mmX0.297mm
Brightness 150-250cd/㎡
Viewing angle 150°(H），145°(V)
Dimming OSD control
Backlight MTBF 30000hrs
Ordering information:
LCP-2515G 15"LCD,w/2.5U height weight,w/ICA-945 motherboard,w/CPU:Intel ATOM 1.6GHz,w/RAM:1G,w/HDD:160G
Our company also produces a variety of 2.5U reinforcement portable machine, welcome to call for information.
|
