Features:

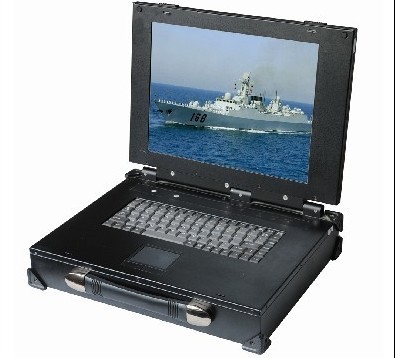

·LCP-2015 integrates the advantages of three kinds of notebook computers: flip-portable machine, rugged notebook and portable laptop.
·Can be inserted a full-size PCI card。
· High-strength aluminum-magnesium alloy structure, scratch-resistant coating on the surface.
·Having EMI / RF protection layer.
·There are 8 damping rubber pad in the four corners of the chassis and four damping rubber pad in the four corners of LCD.
·Hard drive has shock absorber in the chassis.
·Original hard drive shock absorption technology makes data more secure;
·With 8-28 V DC power supply (110V-220V power supply is optional). The front panel has 2 USB interface and anti-slip handles.
·Widely used in medical, military, field operations, industrial services and operations, network communications and testing, highway toll, etc.
Specifications:
system
Driver disk shelf 3.5"HDD bay, Ultra-thin notebook CD-ROM, 2.5"HDD bay(optional)
USB interface 4 USB2.0 interface
Extension interface a 32Bit PCI bus slot
Operating system Windows,NT,UNIX,LINUX,NOVELL,DOS, etc.
Structure
Structure 2.0U High Portable integrated structure
Color Black（Optional）
Dimension 310mm*4000mm*88.5 mm
Environment
Work temperature 0 ～ 40℃
Storage temperature -20 ～ 60℃（Non-condensing）
Work Humidity 10% ～ 90% Relative Humidity，Non-condensing
Vibration 5-17Hz，0.1-inch double amplitude displacement；17-640Hz，
1.56Peak-peak acceleration
Impact 10G Peak-peak acceleration, the duration is 15MS in the X, Y, Z axis.
EMC 3C/CE/FCC A
Recommended with ICA-945 Embedded Motherboard
CPU On board ATOM 1.6GHz
Chipset Intel 945GM + ICH7
Memory Standard DDRII 1GB, up to 2GB
HD 160GB shockproof
Audio interface SPK-Out、MIC-In、Line In
Network Interface 1个 100/1000Mbps Ethernet Controller
I/O port 4×RS232（one supports 485/422），4×USB2.0， 1×VGA，
1×PS/2 Mouse/Keyboard interface
Power DC8-28V 5A power adapter，AC100V~265V 65Hz
LCD
Display 15"TFT LCD
Active area 304.1mm(H) ×228.1mm(V)
Best Resolution 1024×768 @85Hz
Colors 16.7M
Pitch 0.297mmX0.297mm
Brightness 150-250cd/㎡
Viewing angle 150°(H），145°(V)
Dimming OSD control
Backlight MTBF 30000hrs
Ordering information
LCP-2015 15"LCD,w/2U height chassis,w/CPU:Intel ATOM 1.6GHz,w/RAM:1G,w/HDD:160G
Our company also produces a variety of 2U industrial portable machine, welcome to call us for information. |
